How do I enable Upnp ?

Hi

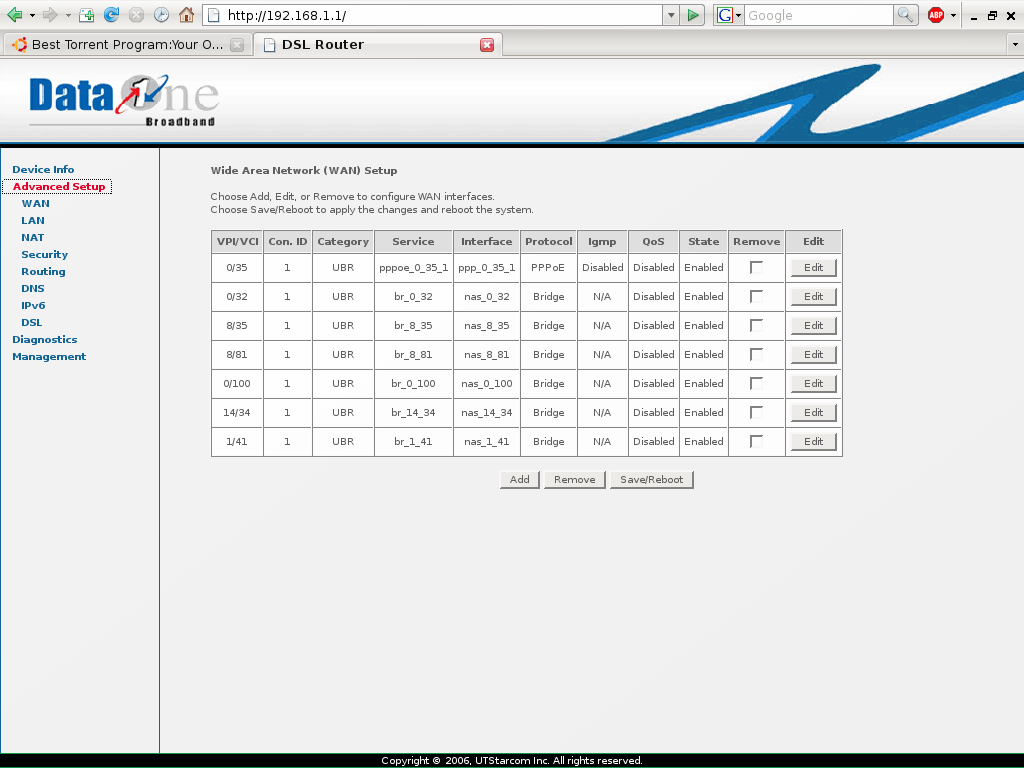

I don't know what exactly this is but I want to enable Upnp so that I can use torrents. I can't seem to find an option there to enable upnp. Screenshots attached (hopefully!)

Thanks for your time.

For some reason the attachments have been scaled down. See these:

The links you have provided will not help either.. You have to be logged in to view attachments on a forum..

I have removed those links now and the attachments as well..

Please upload to any image hosting site and post the links here for every one to see.

try imagevenue.com or imageshack.us or anyother similar site to upload your pictures.

Oh, sorry for that.

I can't find the enable Upnp checkbox

Hi
I too have the same situation
No tab to activate DHCP or UPnP
Any help will be great

Mention modem model and make.

Check under LAN page/s

Local Area Network (LAN) Setup

Configure the DSL Router IP Address and Subnet Mask for LAN interface. Save button only saves the LAN configuration data. Save/Reboot button saves the LAN configuration data and reboots the router to make the new configuration effective.

IP Address:
Subnet Mask:

Host Name:
Domain Name:

Enable UPnP
........

Google Spider enable DMZ Port on your ADSL Router. Put your computer's IP address to the DMZ port. I think the DMZ port you fiend in your ADSL Router in option Advanced Setup.

in ut300r2u the virtual server page is not available to open ports.. you could use NAT-DMZ with a strong firewall.. take a look at this Prashanth Speaks-Technology and Life: Port Forwarding In UT300R2U ADSL MODEM

@@mraman

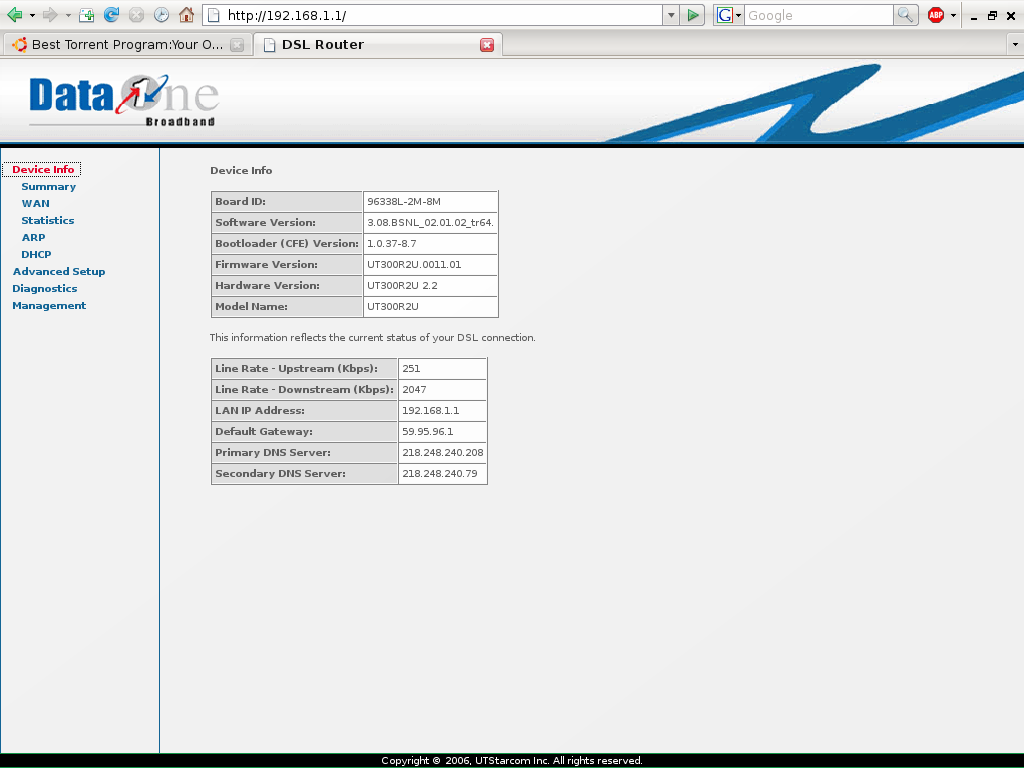

Post Device status page of your modem as Jpg annexure
If possible reduce the size 800 x 600 will do.
Or give the modem make /model.
Do you use Dialer to connect ?

UPnP Help

Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

Turn UPnP On

UPnP can be enabled or disabled for automatic device configuration. The default setting for UPnP is disabled. If disabled, the router will not allow any device to automatically control the resources, such as port forwarding (mapping), of the router.
